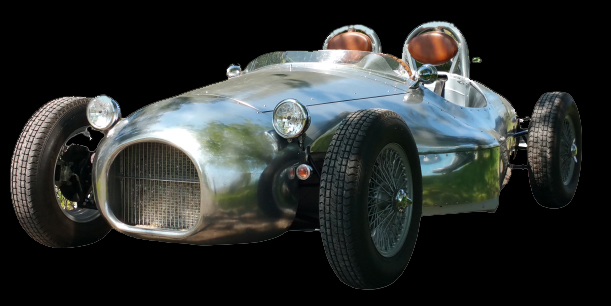

The Nuvolari
A lightweight aluminum bodied, two seat, mid-engine, independently suspended,
finely handcrafted motorcar in the vintage tradition.
Powered by the classic
Alfa Romeo 2.0 litre Twin Cam engine.
Hand formed in Prince Edward County.



Building the Nuvolari Video

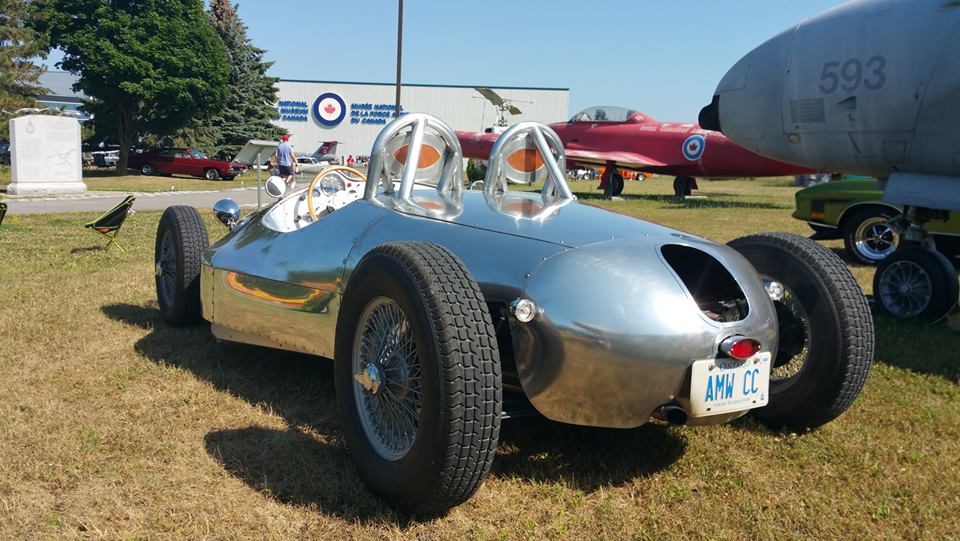

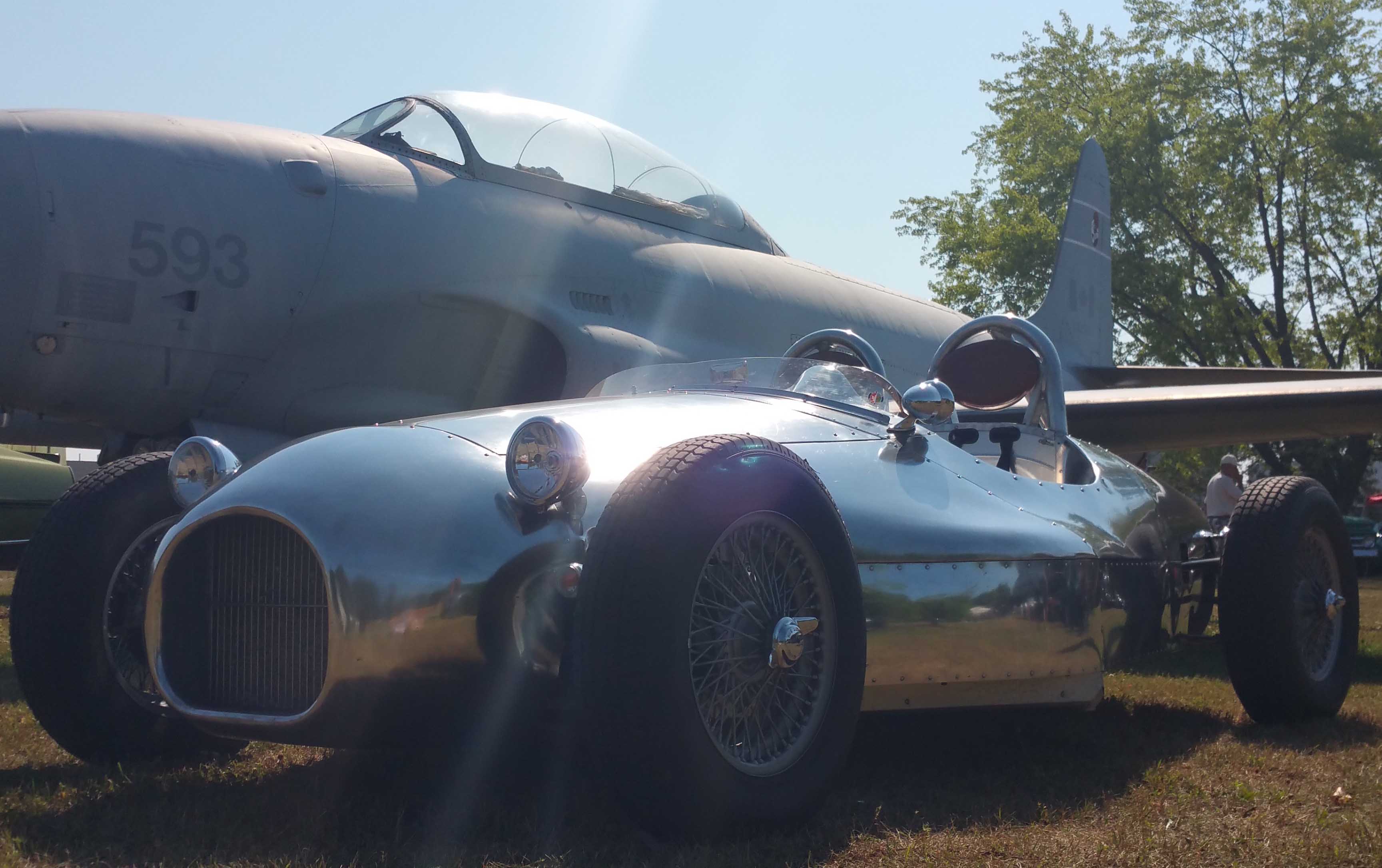

Wings and Wheels
at Trenton 2018


The

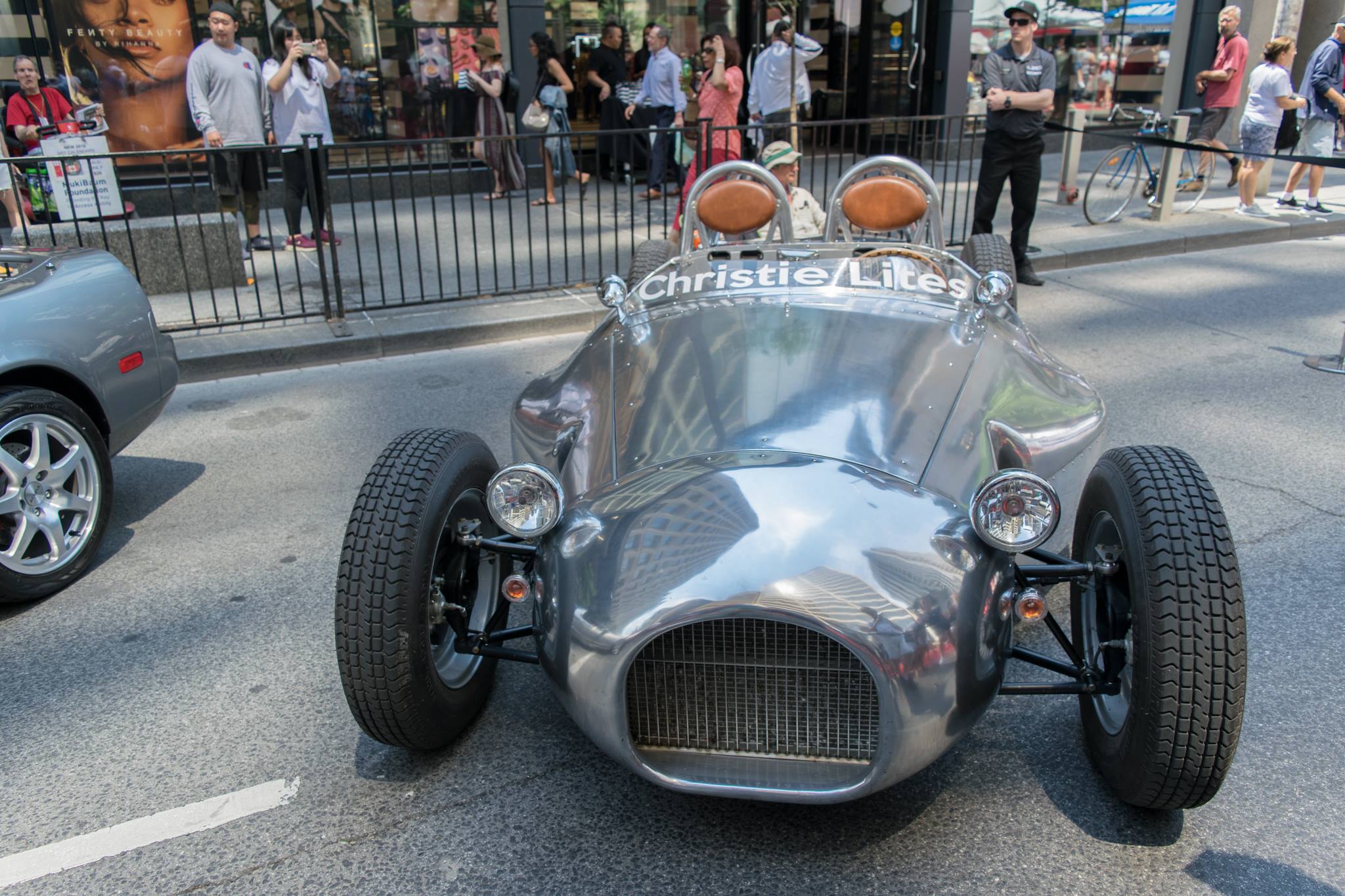

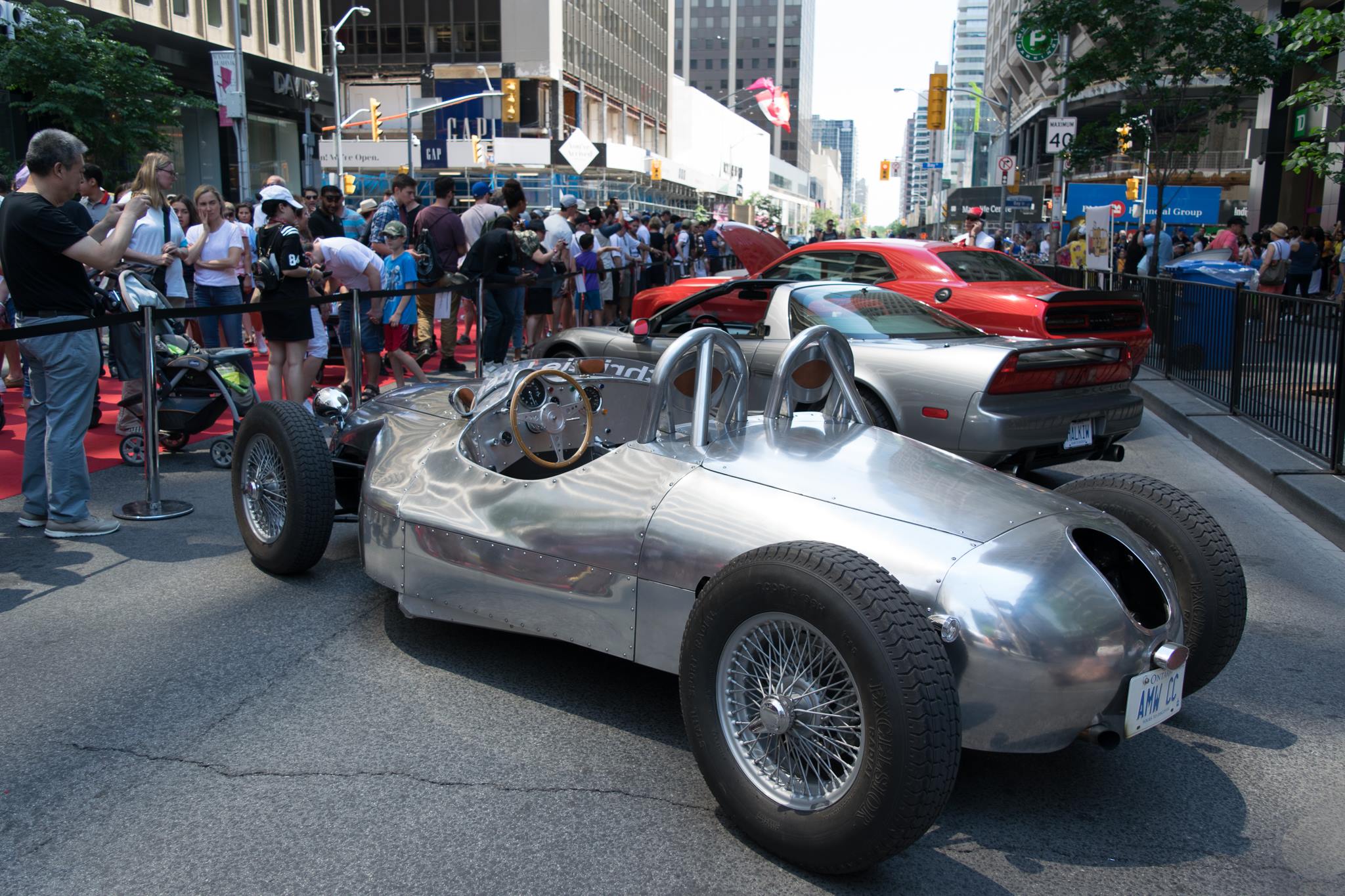

Adler Nuvolari at Toronto Motorama 2018

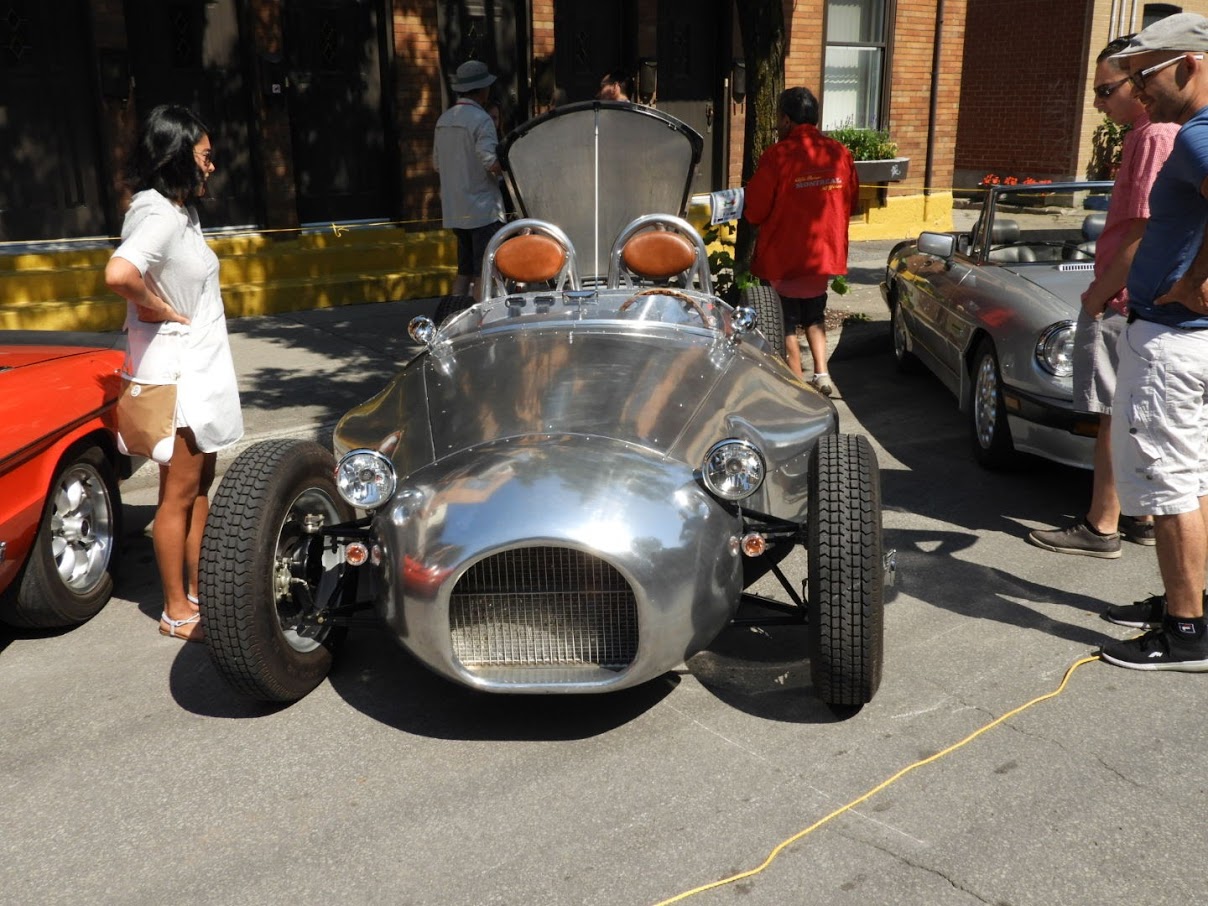

Little Italy in Montreal for the Italian car day 2017.  Alfie drew quite a crowd.

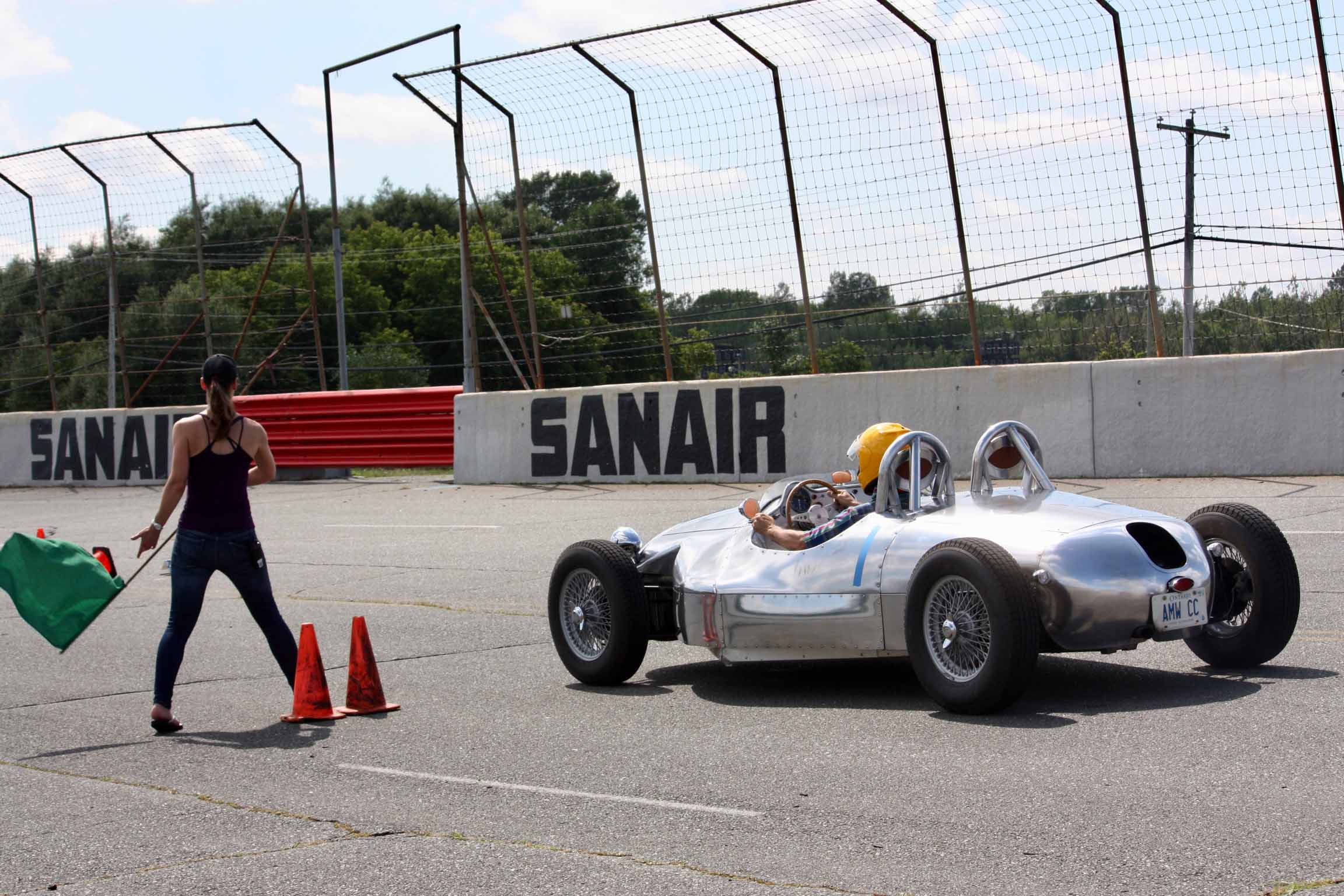

Dodging cones at Sanair  VIDEO

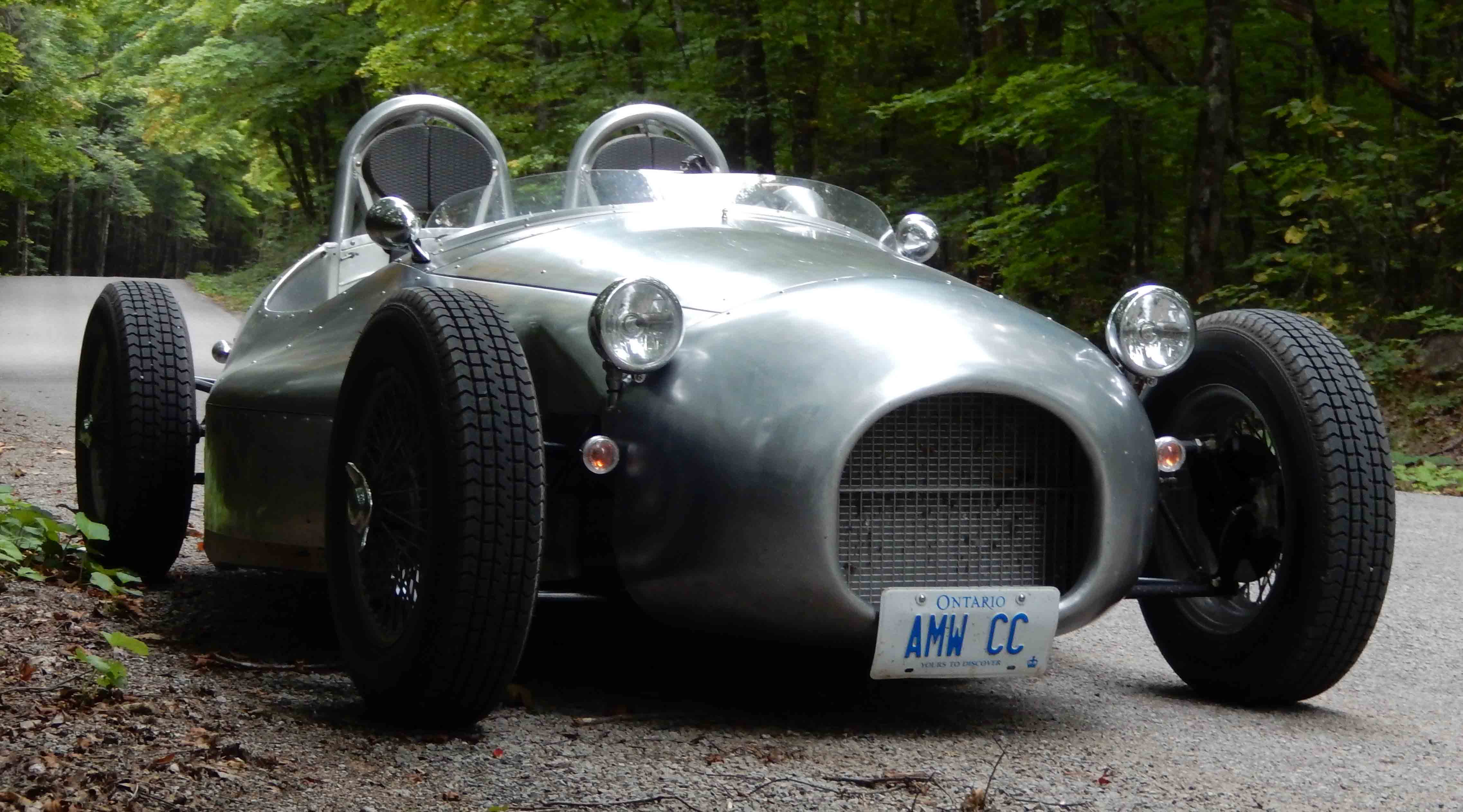

Out on the Ontario back roads  VIDEO








An

Design Overview:

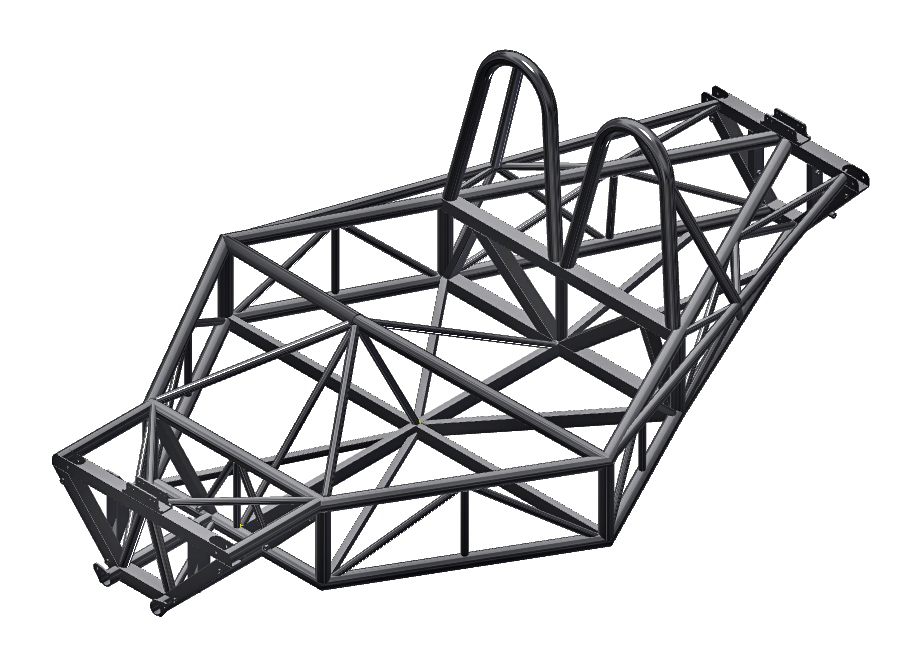

The Design for the Nuvolari started as a space frame concept.
Torsional frame stiffness is an essential feature as it not only improves handling,
but also road manners and makes for a more solid feeling car.
To solve
the problem of triangulating the frame top bays,
this design uses a wide top triangle covering both the cockpit and engine bay.
A torsion test proved it to be a substantially stiff frame design.

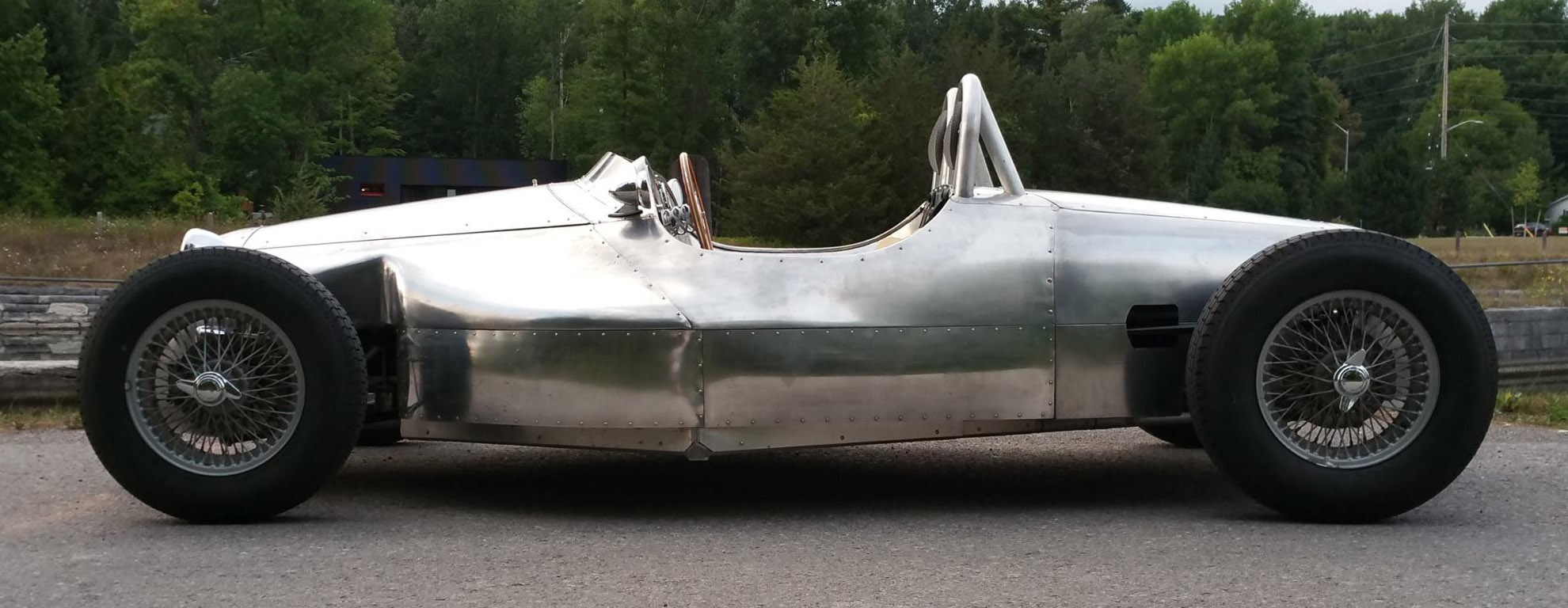

The shape of the frame with the wide centre section defines the body shape.

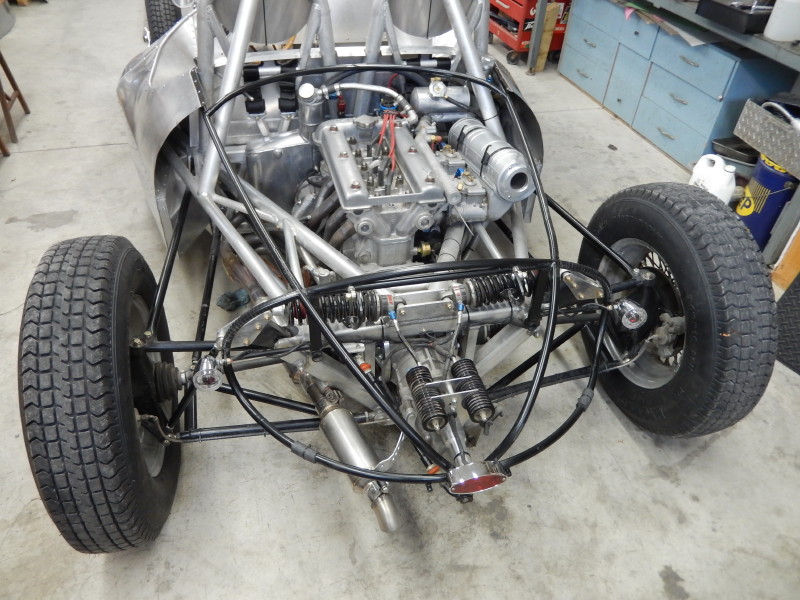

The suspension design uses tubular wishbones which are light and easy to make.
One can easily control roll centre placement and behaviour,
camber curves, caster, and elimination of bumpsteer etc.
The inboard spring/dampers allow for better control over wheel rates and a clean layout.

The look is a mechanical fantasy that reflects a love of vintage GP cars,
open cockpit aircraft, land speed record cars, and some really cool minimalist hotrods.
The mid-engine 1930's Auto Union GP cars were certainly an inspiration.

The Nuvolari Specifications:
Name
 Alfie
Body
 hand formed aluminum
Frame
 tubular aluminum space frame
Suspension front / rear
 fully independent with unequal length wishbones
 pushrod actuated inboard spring/damper units
Cooling
 front mounted aluminum radiator
Steering
 rack and pinion
Wheelbase
 111"
Track front / rear
 59" / 59.5"
Overall width
 70"
Overall height
 46" (to top of roll over bars)
Overall length
 147"
Ride height front / rear
 6" / 7.5"
Tyre size front/rear
 6.00R16 28"OD /  7.00R16 29"OD
Curb weight
 1450 lbs
Fuel capacity
 40 litres (in bladder type fuel cell)
Engine
 2.0 litre Alfa Romeo aluminum Twin Cam
Power
 adequate
Dry sump oil capacity
 8 litres
Coolant capacity
 10 litres
Gearbox/transaxle
 VW Type 1 built to AMW spec
Top speed
 pardon officer?

Building the Nuvolari Video




The Nuvolari is designed and built by:
Percy Adler of Adler Metal Works
 Prince Edward County
 Ontario, Canada






A great article about the car.

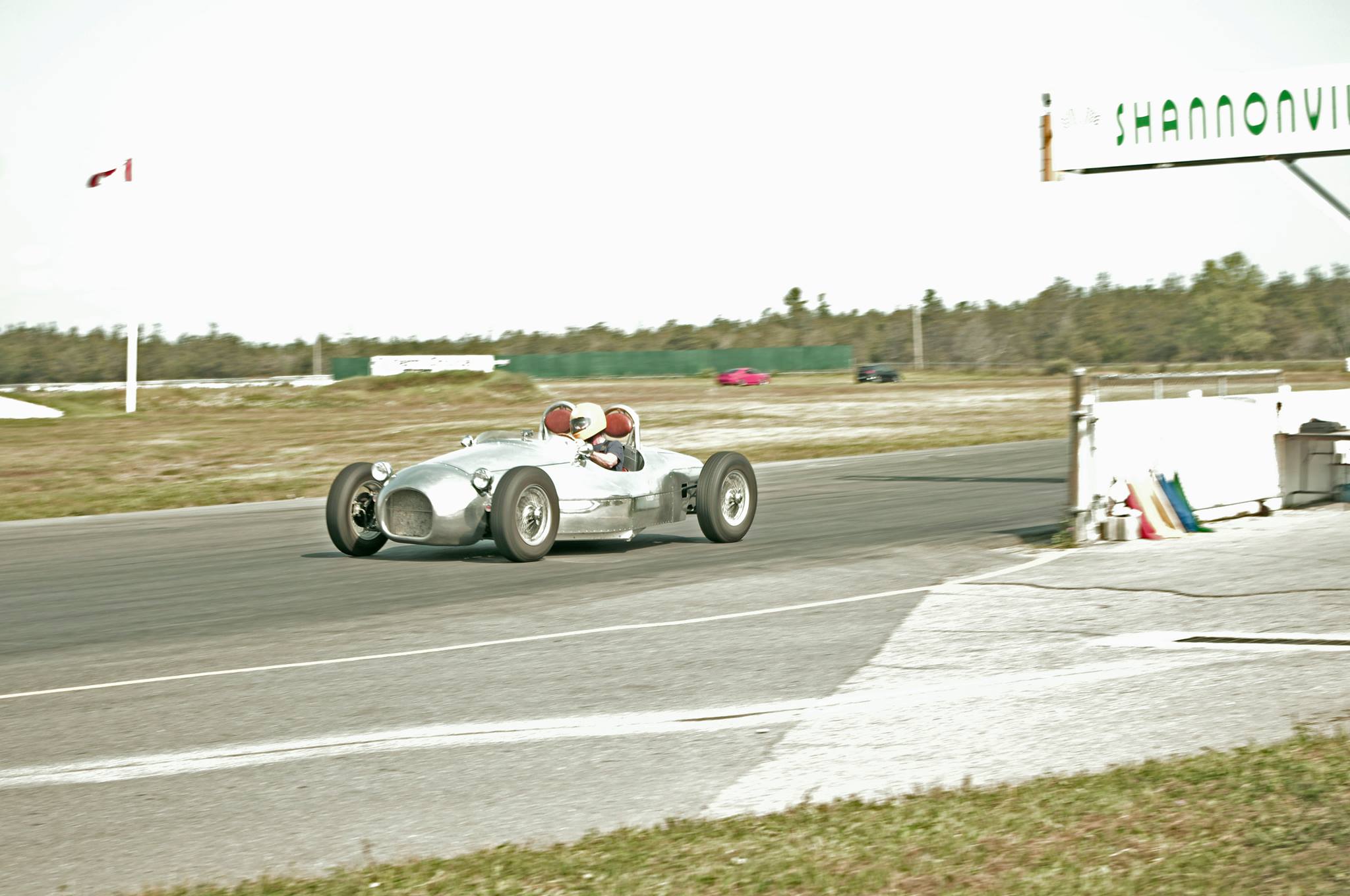

Shannonville track day  VIDEO
